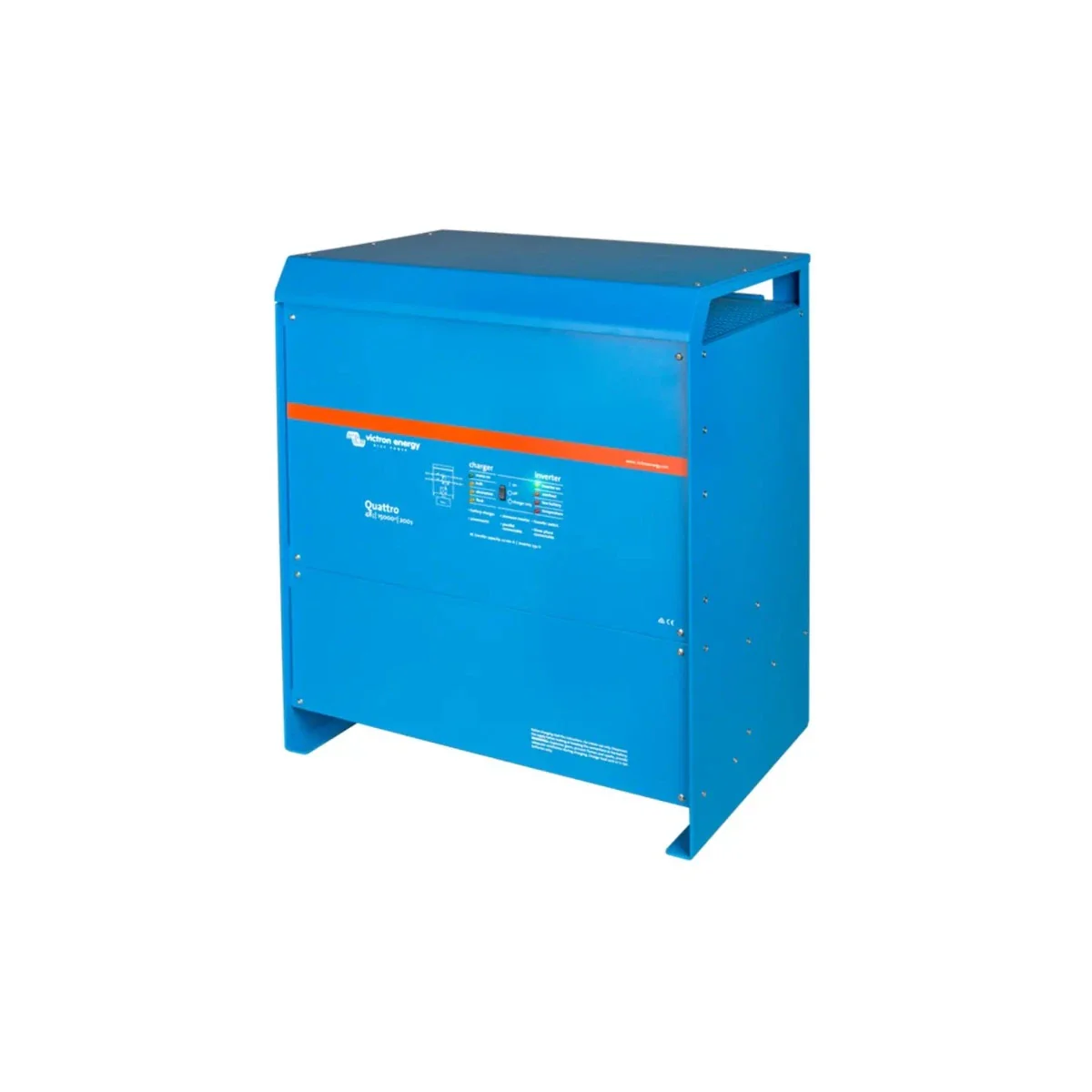

Victron Quattro 48/15000/200-100/100 230V VE.Bus
Victron Quattro 48/15000/200-100/100 230V VE.Bus
Victron’s Quattro model combines both inverter and charger functionalities. Additionally, it can accept two AC inputs and automatically connect to the active source. This is a top-class design product with a rigid structure that makes it suitable for industrial applications.
Product Features:
- It has two AC inputs which can be used for two different AC sources like grid and generator.
- It’s a transformer-based inverter that is suitable for industrial applications such as running motors and pumps.
- Less than 20 milliseconds reconnection time. Seamless, uninterrupted change over between alternate power sources.
- Automatic battery power supply to compensate where peak power is required.
- Compatible with a range of different battery models (Please see attached compatibility list document).
- Can be used for AC coupling applications with various grid-tie inverter models.
- The unit is capable of parallel operation:-
- 6 x 15kVA single/split phase summing up to 90kVA
- 12 x 15kVA three-phase, (4 units per phase) summing up to 180kVA
- Remote monitoring and control using the VRM portal https://vrm.victronenergy.com/landingpage
Specifications:
- PowerControl / PowerAssist - Yes
- Integrated Transfer switch - Yes
- AC inputs (2x) - Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz
- Maximum feed through current (A) - 2 x 100A
- Input voltage range (V DC) - 38 – 66V
- Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
- Cont. output power at 25°C (W) - 12000W
- Peak power (W) - 25000W
- Maximum efficiency - 96%
- Charge voltage 'absorption' (V DC) - 57.6V
- Charge voltage 'float' (V DC) - 55.2V
- Battery temperature sensor - Yes
Important Notice: Click Here
