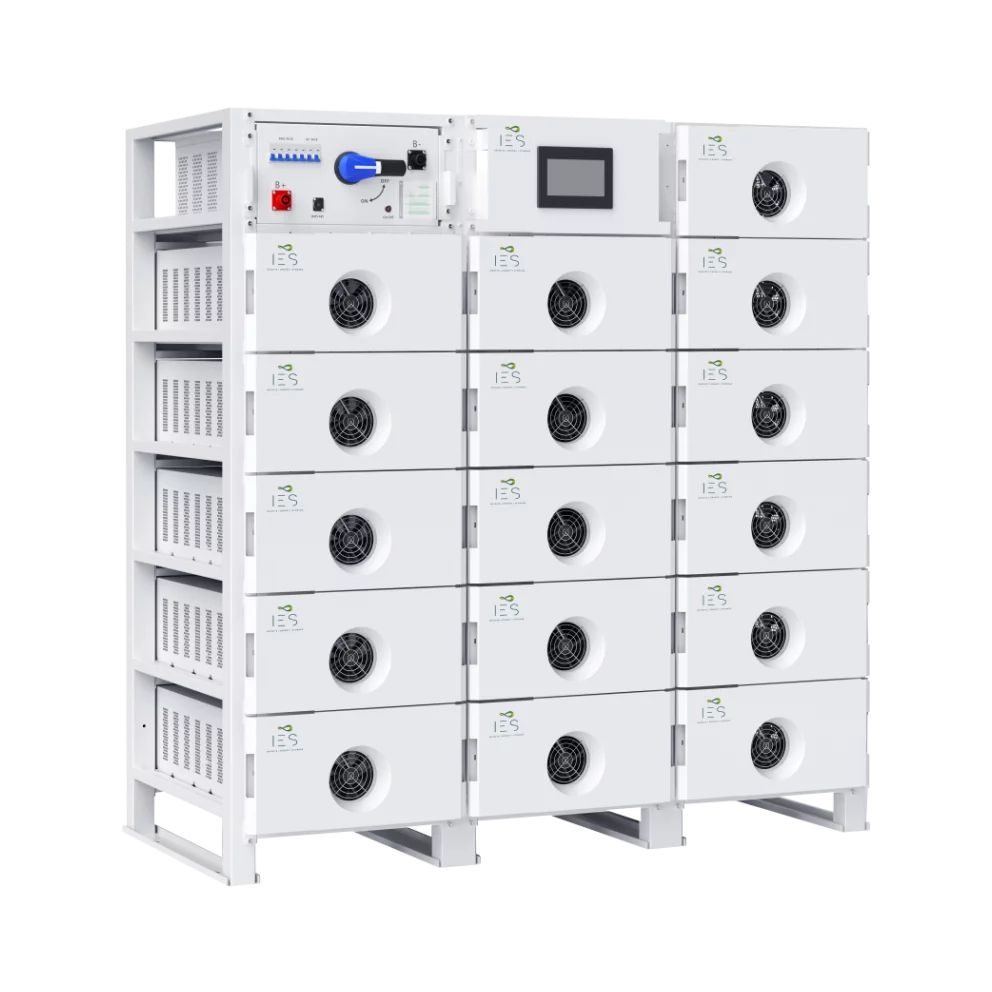

IES 229R Battery 229.37kWh 819.2V 280AH

IES advanced Battery Energy Storage Systems are not only innovative but have also delivered proven results. IES has a focus on quality and performance, and consistently exceed expectations, leading to high customer satisfaction rates. IES is committed with reliable, efficient energy solutions that truly make a difference.

Product Features:

• Indoor battery rack with IP20 protection level, inbuild lithium-ion battery and BMS

• Local and remote management, standard rack & module design, front maintenance
• Self-developed 2-level / 3-level BMS, multiple protection, safe and reliable
• Long cycle life, 8000 cycles
• High capacity LFP battery
• Advanced cell balancing

Specifications:

• Performance

  • Battery module (Wh/V) 14.336 kWh, 51.2 V, 110 kg (242.5 lbs)
  • Number of modules 16
  • Cell technology LFP (LiFePO4)
  • Battery usable energy [1] 229.376kWh
  • Nominal voltage 819.2 V
  • Operating voltage 716.8-898.56V
  •  Nominal output current 140 A / 280 A

• Communication:

  • Display - SOC status indicator, LED indicator, LCD display
  • Communication - Ethernet / CAN / RS485

• General Specification:

  • Dimension (W*D*H) 67.8x33.1x69.9 inch
  • Weight 2090kg (4608lbs)
  •  Operating temperature -20 to 60 °C (-4 to 140 °F)
  • Environmental humidity ≤ 95%RH (No condensation)
  • Protection rating IP 20
  • Cycle life 8000 Cycles @ 80% DOD / 25℃ / 0.5C，70% EOL
  • Scalability Yes
  • Application ON Grid / ON Grid + Backup / OFF grid
  • Compatible PCS Refer to compatible PCS list

• Standard Compliance:

  • Certificates:
    • Cell: UN38.3 / IEC62619 / UL 1642 / JET
    • Pack: UN38.3 / IEC62619 / IEC61000
    • System: UL 9540 (More available upon request)
