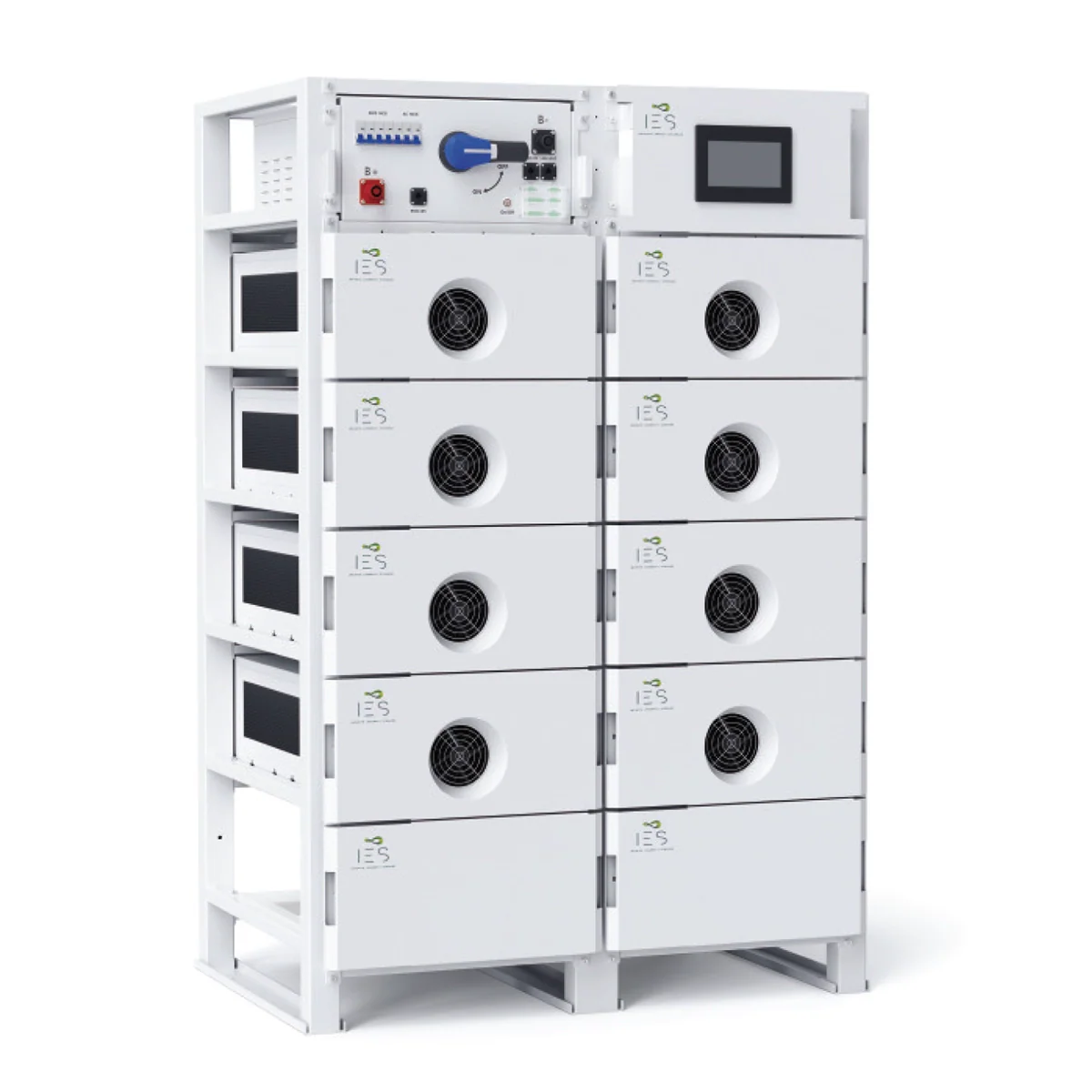

IES 114R Battery 114.688kWh 409.6V 280AH

IES advanced Battery Energy Storage Systems are not only innovative but have also delivered proven results. IES has a focus on quality and performance, and consistently exceed expectations, leading to high customer satisfaction rates. IES is committed with reliable, efficient energy solutions that truly make a difference.

Product Features:

• Indoor battery rack with IP20 protection level, inbuild lithium-ion battery and BMS

• Local and remote management, standard rack & module design, front maintenance
• Self-developed 2-level / 3-level BMS, multiple protection, safe and reliable
• Long cycle life, 8000 cycles
• High capacity LFP battery
• Advanced cell balancing

Specifications:

• Performance:

  • Batter module (Wh/V): 14.336 kWh, 51.2 V, 110 kg (242.5 lbs)
  • Number of modules: 8
  • Cell technology: LFP (LiFePO4)
  • Batter usable energy: 114.688 kWh
  • Nominal voltage: 409.6 V
  • Operating voltage: 364.8-449.28 V
  • Nominal output current: 140 A / 280 A

• Communication:

  • Display: SOC status indicator, LED indicator, LCD display
  • Communication: Ethernet / CAN / RS485

• General Specification:

  • Dimension (W*D*H):
    • 1164x840x1776 mm
    • 45.8x33.1x69.9 inch
  • Weight: 1130kg (2491lbs)
  • Operating temperature: -20 to 60 °C (-4 to 140 °F)
  • Environmental humidity: ≤ 95%RH (No condensation)
  • Protection rating: IP 20
  • Cycle life: 8000 Cycles @ 80% DOD / 25℃ / 0.5C，70% EOL
  • Scalability: Yes
  • Application: ON Grid / ON Grid + Backup / OFF grid
  • Compatible PCS: Refer to compatible PCS list

• Standard Compliance:

  • Certificates:
    • Cell: UN38.3 / IEC62619 / UL 1642 / JET
    • Pack: UN38.3 / IEC62619 / IEC61000
    • System: UL 9540 (More available upon request)

Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.
