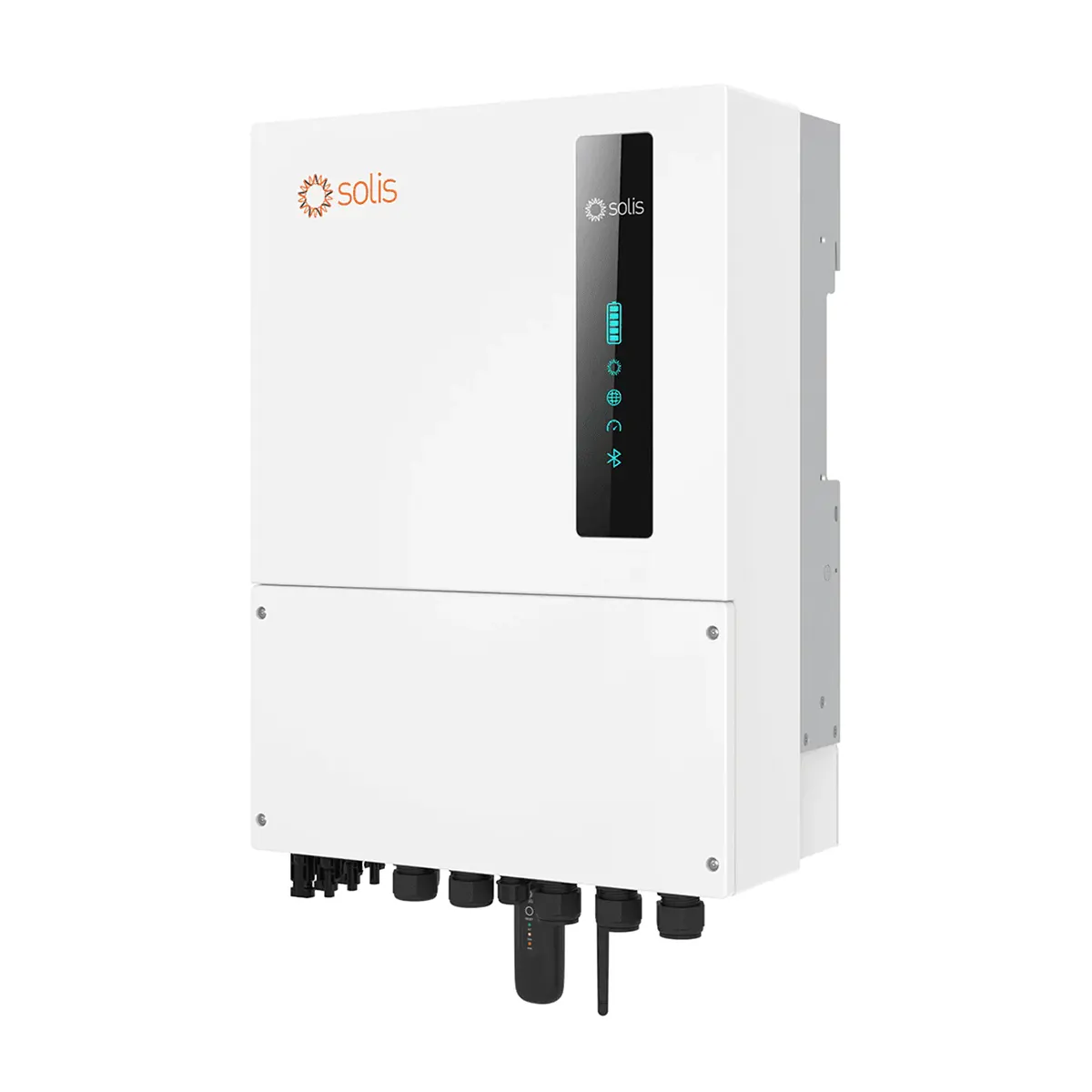

Solis S6 Pro 5kW Advanced Hybrid Inverter - SOL-S6-EH1P5K-L-PRO

Introducing the Solis S6 Pro 5kW Advanced Hybrid Inverter, a smart and robust solution for today's solar market. With flexible single-phase or three-phase connections and the ability to support up to six units for a powerful 30kW backup, it ensures uninterrupted power supply during outages. The intuitive LED display, automatic generator integration, and real-time energy management make it a convenient and reliable investment, backed by a 5-year warranty extendable to 10 years.

Product Features:

Generator connectivity with multiple input methods and automatic generator On/Off control
Automatic UPS switching
10 second 200% surge power backup overload capability
6 customisable charge/discharge time settings
Up to 112A max charge/discharge current
Compatible with lead-acid and lithium batteries, with multiple battery protection features
Supports peak shaving control in both "self-use" and "generator" mode

Specifications:

Input DC (PV side)

Recommended max. PV power: 8 kW
Max. input voltage: 600 V
Rated voltage: 330 V
Start-up voltage: 90 V
MPPT voltage range: 90-520 V
Max. input current: 16 A / 16 A
Max. short circuit current: 24 A / 24 A
MPPT number/Max. input strings number: 2/2

Input AC (Grid side)

Input voltage range: 187-253 V
Max. input current: 32 A
Frequency range: 45-55 Hz / 55-65 Hz

Output AC (Grid side)

Rated output power: 5 kW
Max. apparent output power: 5.5 kVA
Rated grid voltage: 220 V / 230 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 22.7 A / 21.7 A
Max. output current: 25 A

Battery

Battery type: Li-ion / Lead-acid
Battery voltage range: 40-60 V
Max. charge / discharge power: 5 kW
Max. charge / discharge current: 112 A
Communication: CAN/RS485

Physical

Dimensions (W*H*D): 406*560*205 mm
Weight: 24 kg
Ingress protection: IP66
Cooling concept: Natural convection
