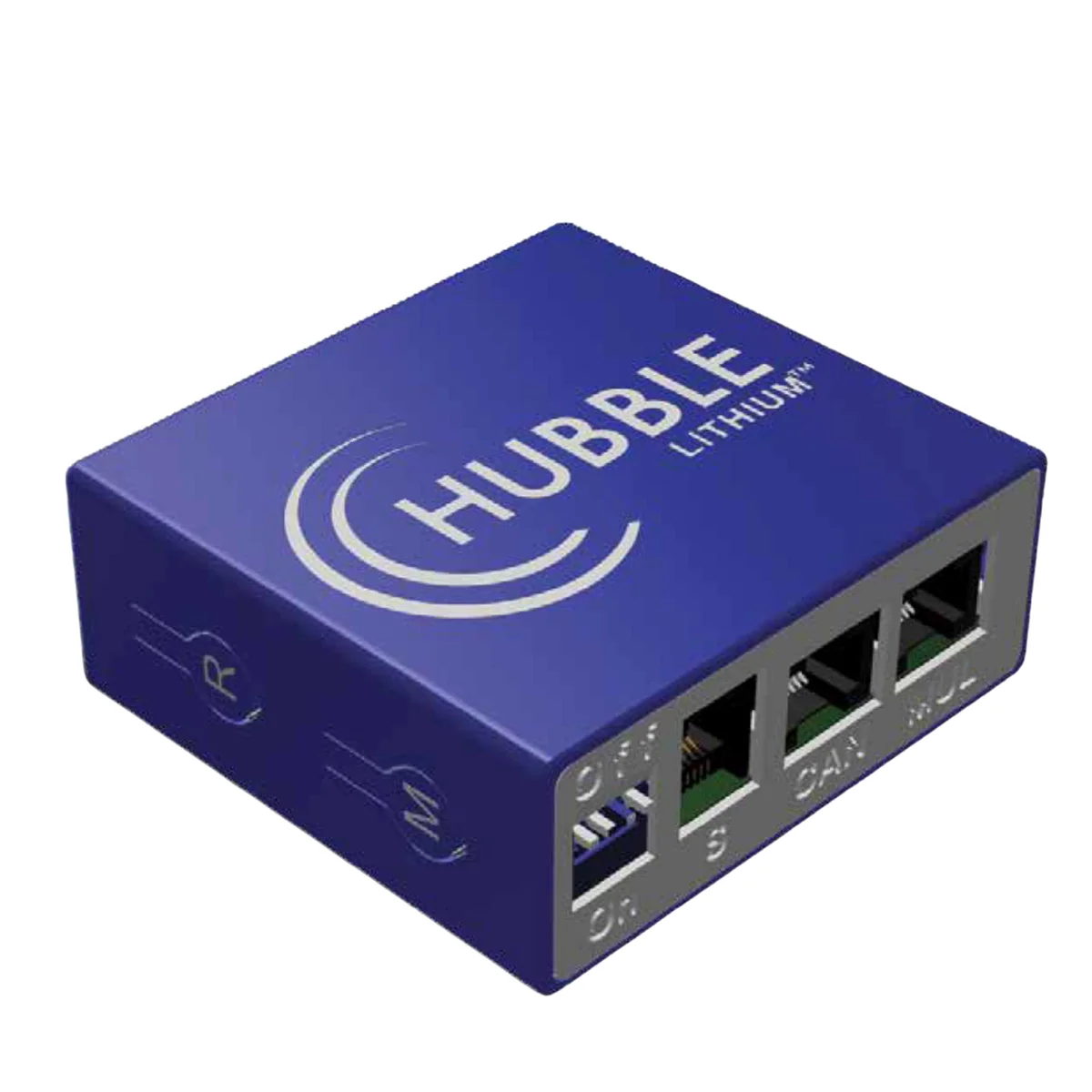

Hubble Cloudlink V2.0 – CAN Bus & Cloud Monitor

The Hubble Cloudlink V2.0 is an advanced CAN bus converter and cloud monitoring interface designed to seamlessly integrate Hubble Lithium batteries with compatible inverters. Engineered for precision control and real-time monitoring, the Cloudlink V2.0 empowers users with remote access to inverter performance, battery status, and energy usage insights. Ideal for residential and commercial energy systems, it combines intelligent features, encrypted communication, and effortless installation to deliver a reliable, future-ready energy management solution.

Product Features

CAN bus converter for Hubble Lithium BMS systems
Remote monitoring of batteries and selected inverters via cloud
Remote control functionality for Voltronic Axpert Inverters
Integrated Artificial Intelligence processor
Multiple CAN bus protocols for enhanced inverter compatibility
Embedded support for Hubble Cloudlink, Victron, SMA, and Pylontech
Reports inverter metrics like load, grid, and PV wattage to the cloud
Real-time and historical data display with smart widget interface
Data export functionality for offline analysis
Annual and monthly power saver statistics
Encrypted Over-the-Air (OTA) firmware updates
Easy “Plug & Play” installation via RS232 for select inverters
Compatible with 1-phase and 3-phase energy meters for cloud monitoring
Designed and assembled in South Africa

Specifications:

Power & Indicators

Input Voltage: 20V to 75V DC
Power Consumption: <2W
LED Indicators: Power, 3G connection, CAN communication, CPU status
Buzzer: Used for configuration mode
Mode Button: Multi-function (configuration, factory reset)

Compatibility

Battery Models: Hubble AM Series and X Series
Inverters: Compatible with multiple brands (refer to full compatibility list)

Communications

CAN Bus: 2 x RJ45, built-in termination
RS485 Modbus: Configurable
RS232 Serial: RJ11 with TX/RX pinout
Wi-Fi: Supports 802.11b/g/n/e/i (up to 150 Mbps), multiple modes
Wi-Fi Security: WPA/WPA2/Enterprise/WPS
Bluetooth: V4.2 BR/EDR & BLE, Class 1/2/3 transmitter, -98 dBm receiver sensitivity

Energy Monitoring

Measures power quality, THD%, phase angle
Real-time voltage, amperage, and kWh tracking

Physical Dimensions

Size: 80mm x 75mm x 32mm
