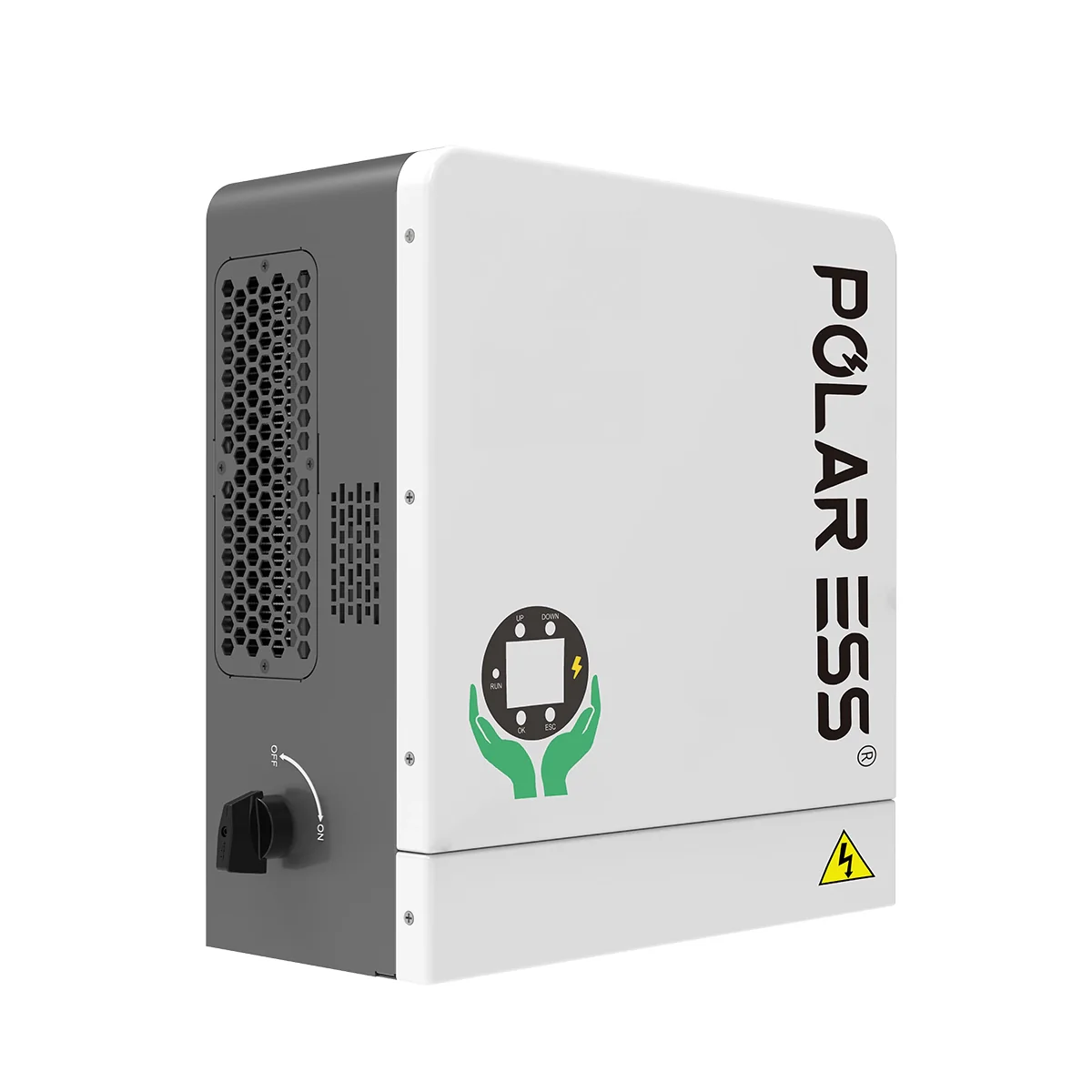

Polar ESS 6kW Hybrid Inverter - ALPS HY6.0-GL

The Polar ESS 6kW hybrid inverter offers an economical and premium solution that combines grid-tied and off-grid systems. This allows for optimized energy usage and cost savings, while maintaining a reliable power supply.

Product Features:

Full power backup
2 MPPTs, suitable for roofs facing different directions
LCD display, convenient for reading operation and setting parameters
Wide range of PV voltage, supports 90V-550V, MPPT current 16A
High cost-effectiveness
Supports off-grid and parallel operation (optional)

Specifications:

Input Data (PV):
- Max. DC Input Power (W): 9000W
- Start-up voltage: 90V
- Cut-off Voltage: 70V
- MPPT range: 90V-500V
- Nominal voltage: 360V
- Max. short current: 23A/23A
- Max. input current: 16A/16A
- MPPT tracker/No. of Strings per MPP Tracker: 2/1
Battery
- Battery Type: Li-ion/ Lead-Acid
- Battery Voltage Range: 42-60V
- Nominal Voltage: 48V
- Charge/ Discharge Current: 125A/125A
- Max. Battery Charge/ Discharge Power(W): 6000W/6000W
- Communication Interface: RS485/ CAN
Output Data(AC)
- Nominal AC output Power: 6000W
- Max. Apparent Power Output to Utility Grid (VA): 6000VA
- Max. Output Current: 26A
- Nominal Voltage/Range: 230VAC; 184--260VAC
- Frequency Range: 50 ±5Hz
- Power Factor(@full load): >0.99
Backup
- Nominal EPS Output Power: 6000W
- EPS Peak Power(10s): 9000W*2
- Nominal Voltage: 230VAC
- Max. Output Current: 26A
- Nominal Frequency: 50 Hz
- Pass-Through Current: 43A
- Generator Control: 2*DI/DO
General:
- Protection Class: IP20
- Noise Emission (typical): <45dB
- Cooling: Forced air cooling
- Installation: Wall hanging
- Display: LCD/LED
- Interface: RS485 / Wi-Fi (USB)- optional / LAN 2*Programmable DI/DO

Polar ESS 6kW Hybrid Inverter - ALPS HY6.0-GL

Product Features:

Specifications:

Important Notice: Click Here

Polar ESS

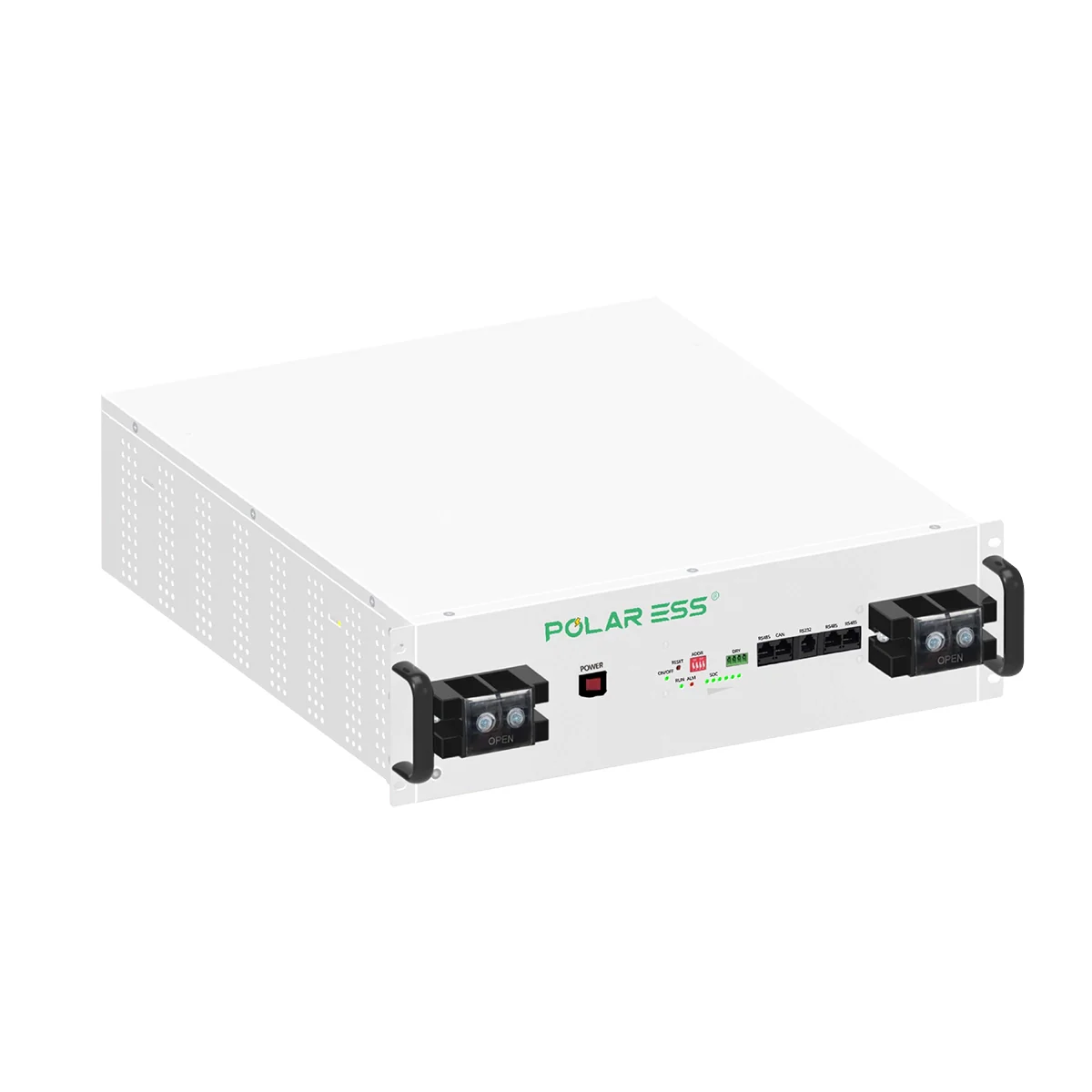

Polar ESS 5.2kWh Lithium Battery
