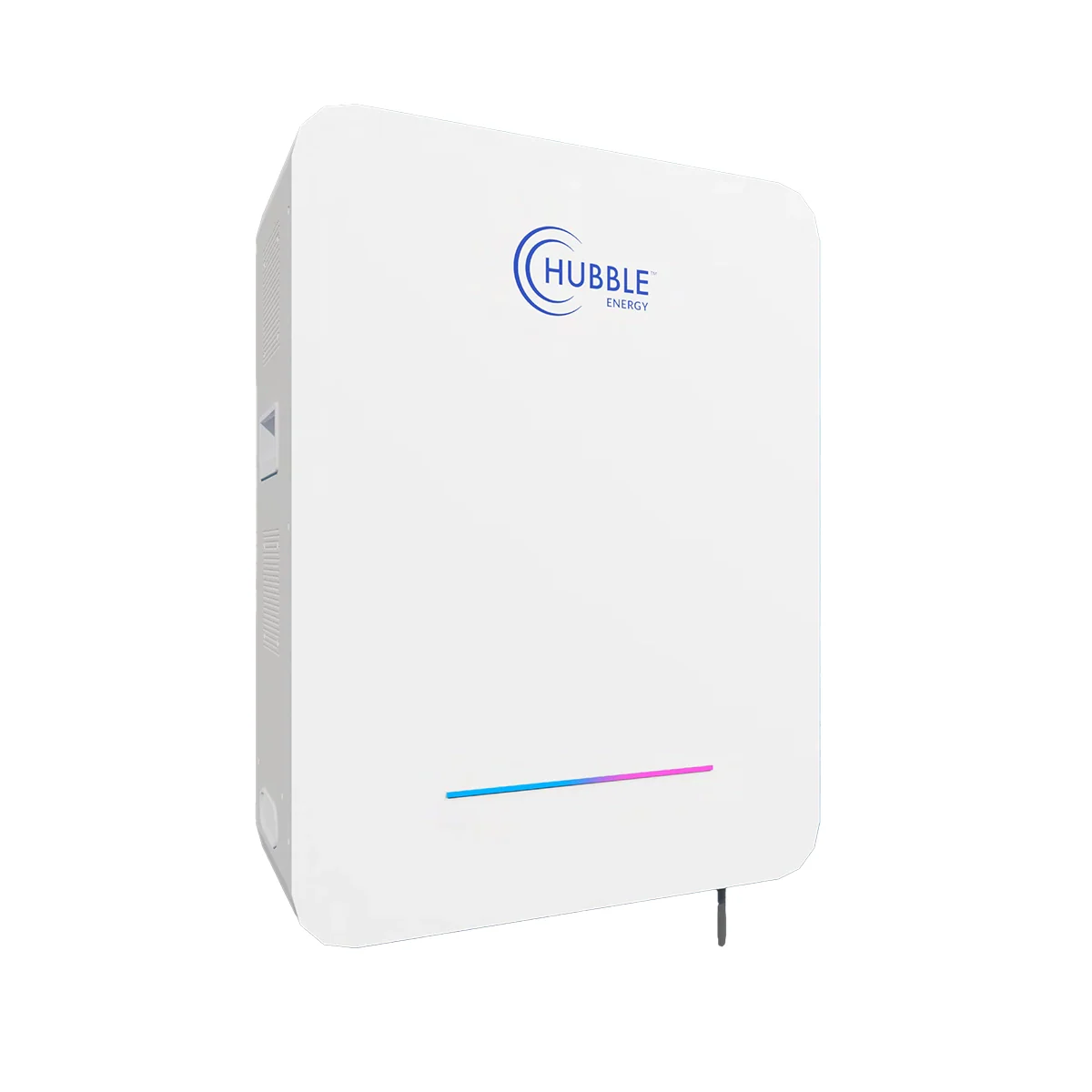

Hubble Lithium AM10+, 10kWh 51.2V Battery

Hubble Lithium's AM10+ model is a low voltage (51V), 10kWh battery made up of superior prismatic lithium-ion cells. These battery cells have more energy density and a longer cycle life compared to standard lithium cells.

Product Features

Unlimited Cycle Warranty (Terms & Conditions Apply)
Prismatic LiFePO4 Cells for enhanced durability and performance
1C High Performance Lithium Battery for efficient energy delivery
Integrated 24/7 Monitoring with the Hubble Cloudlink
Advanced BMS with current limiting functionality for optimal operation
Easy Wall Mount Installation for space-saving convenience
Informative RGB LED Display Strip for at-a-glance system status
High Cycle and Service Life for long-term reliability
Compatible with Most Inverters and Chargers for versatile integration
Built-in Protection against over-charge, over-discharge, and over-temperature
CAN Bus Compatibility for seamless communication with leading inverter brands
Scalable System design, supporting up to 15 units for expanded capacity
Compatible with AM-10 (with Cloudlink) for added functionality and control

Specifications:

Battery Parameters
- Model: Hubble AM-10+
- Battery Type: LiFePO4 (LFP) with 16 cells per battery
- Nominal Voltage: 51.2 Vdc
- Nominal Energy: 10 kWh
- Design Capacity: 200 Ah
- Operating Voltage Range: 43.2 Vdc – 58.4 Vdc
- Charging Voltage: 55.2 Vdc
- Charge Current (Max): 115 A
- Discharge Current (Max): 200 A
- Cell Service Life: Unlimited cycles within the 10-year warranty (Terms & Conditions Apply)
- Design Lifetime: 15 years
Battery Management System (BMS)
- Power Consumption: ≤ 2 W
- Cell Balancing: Passive, activated when cells are near full charge voltage
- Intelligent Current Limiter: Limits charging current to 20 A if it exceeds 200 A
- Protection: Over-charge, over-discharge, over-current, short circuit, and over/under-temperature
Cloudlink (Monitoring)
- Power Consumption: ≤ 2 W
- Wi-Fi Protocol: 802.11 b/g/n/e/i (supports 802.11n up to 150 Mbps)
- Communication Interfaces: CAN / RS485 / RS232
Physical
- Dimensions: 675 mm (Height) × 510 mm (Width) × 230 mm (Depth)
- Weight: 89 kg
- Installation: Wall-mounted with a mounting bracket

Hubble Lithium AM10+, 10kWh 51.2V Battery

Product Features

Specifications:

Battery Parameters

Battery Management System (BMS)

Cloudlink (Monitoring)

Physical

Important Notice: Click Here

Hubble

Hubble Lithium AM2 5.5kWh 51V Battery

Hubble Lithium AM-5R2 5.12kWh 51.2V Battery

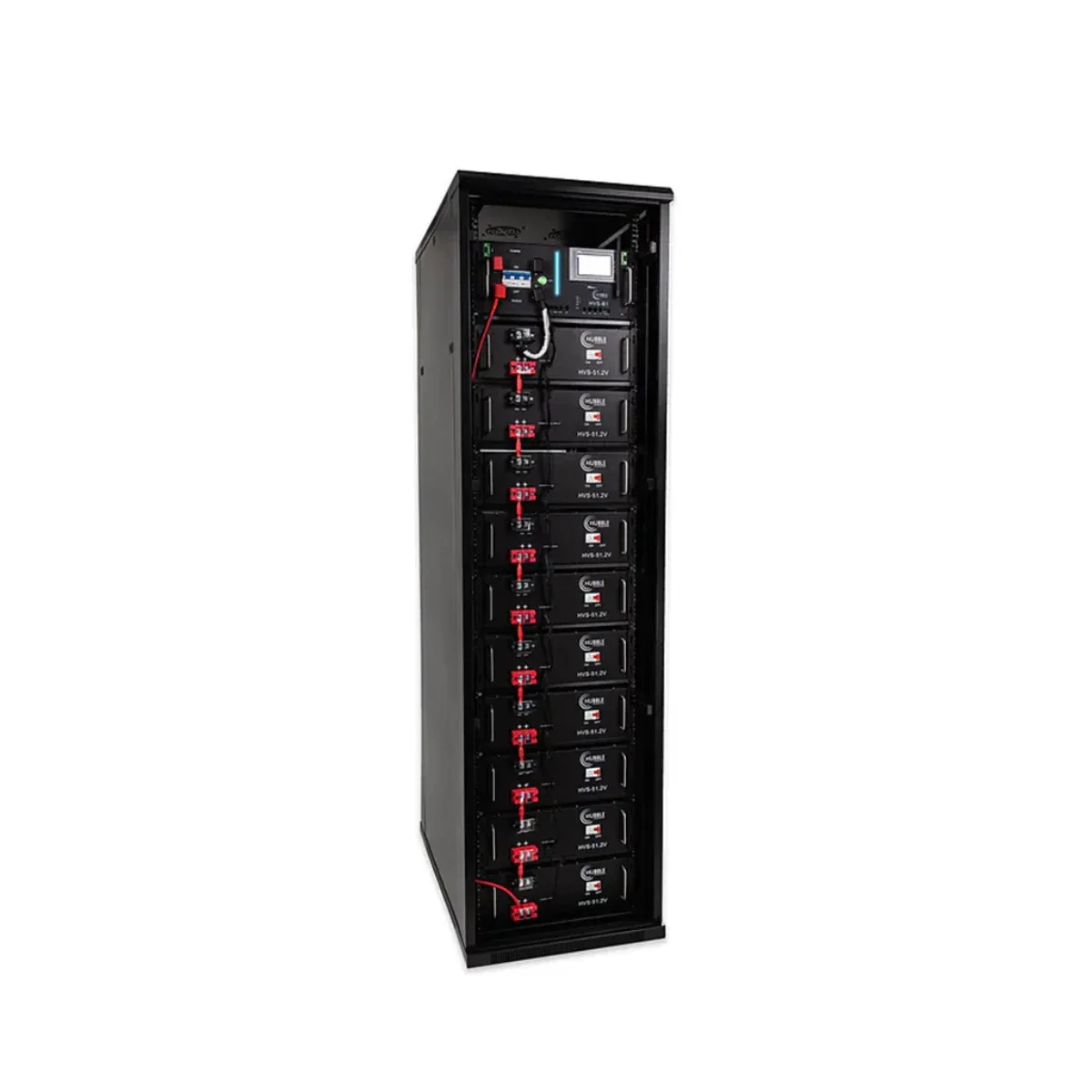

Hubble Lithium HV 51.2kWh System
