Huawei iSitePower-M 5kw Power Module - iSitePower-M-MAP05A1

Product Features:

24 Hours Power Supply: Fully discharge using the energy optimizer to maximize efficiency.
Safe & Reliable: This power module features a four-level safety system for enhanced protection.
High Quality Experience: A single application for comprehensive management.

Specifications:

System Specifications:

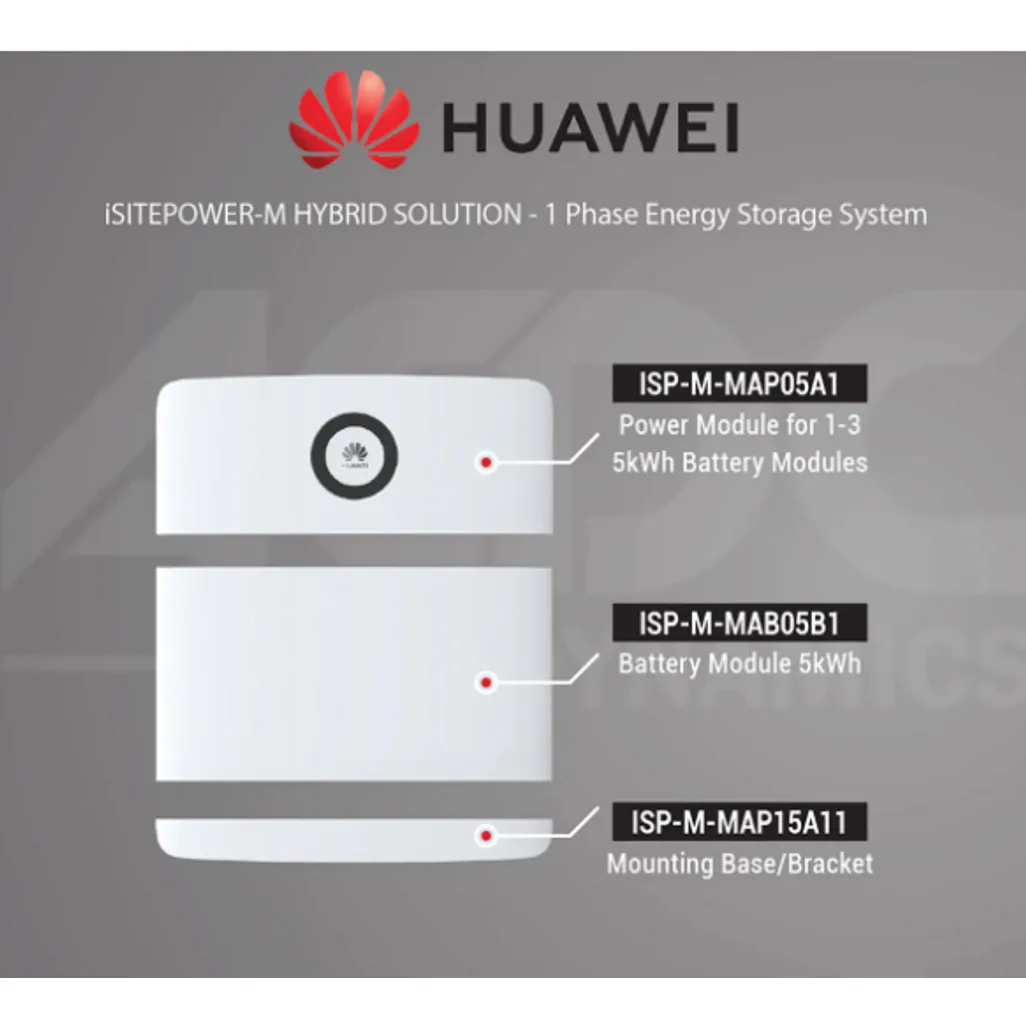

- Power module: iSitePower-M-MAP05A1
- Output/Input power per module: 2.5 kW
- Battery module: iSitePower-M-MAB05B1
- Battery module capacity: 5 kWh
- Number of power modules: 1
- Number of battery modules:
  - 1 Battery Module:
    - Battery usable capacity: 5 kWh
    - Max. output power: 2.5kW
  - 2 Battery Modules:
    - Battery usable capacity: 10 kWh
    - Max. output power: 5 kW
  - 3 Battery Modules:
    - Battery usable capacity: 15 kWh
    - Max. output power: 5 kW
  - 4 Battery Modules:
    - Battery usable capacity: 20 kWh
    - Max. output power: 5 kW
  - 5 Battery Modules:
    - Battery usable capacity: 25 kWh
    - Max. output power: 5 kW
  - 6 Battery Modules:
    - Battery usable capacity: 30 kWh
    - Max. output power: 5 kW
Communication:
- Display: SOC status indicator
- Communication: CAN (for parallel communications between power modules, between battery modules and power modules, and between battery modules); WLAN/FE/4G (for connecting to the SmartPVMS)
General Specification:
- Power module dimension (W x H x D): 700 mm x 246 mm x 152 mm
- Power module weight: 17 kg
- Battery module dimension (W x H x D): 700 mm x 390 mm x 158 mm
- Battery module weight: 50 kg
- Base dimension (W x H x D):
  - 700 mm x 65 mm x 147 mm (floor installation)
  - 643 mm x 110 mm x 176 mm (wall-mounted installation)
- Base weight:
  - 1.5 kg (floor installation)
  - 5.5 kg (wall-mounted installation)
- Installation mode: Wall-mounted/Floor-mounted
- IP rating: IP 66
- Cell technology: Lithium-iron phosphate (LiFePO4)
AC Input:
- Input voltage: 200/208/220/230/240 V AC
- Input current: Max. 30 A
- Frequency: 50/60 Hz
- Maximum bypass input power: 6 kW
- Lightning protection:
  - Differential mode (between live and neutral): 3 kA; 8/20 μs
  - Common mode (between live or neutral and PE, between live/neutral pair and PE): 5 KA; 8/20 μs
PV input:
- MPPT voltage range: 90 ~ 420 V DC
- Maximum input capacity of the MPPT: 5.5 kWp
- PV string quantity: 2 strings
- Number of MPPT channels: 1 channel
- Maximum input current for one string: 12.5 A
- Maximum short circuit current per string: 18 A
- Lightning protection: Common mode (between PV+/PV- pair and PE): ±10 KA; 8/20 μs
AC output:
- Output: Single-phase 200/208/220/230/240 V AC. The default value is 220V AC
- Output frequency: 50/60 Hz. The default value is 50 Hz.
- Maximum output current: 30 A
- Output power: 6 kVA/5 kW
- Power factor: 0.8
Overload capacity:
- 102% ≤ Load ≤ 125%: 30s
- 125% < Load ≤ 150%: 10s
- >150%/short circuit: 0.3s
AC Parallel Box:
- Dimensions (W * H * D): 350 mm x 450 mm x 150 mm
- Weight: Approx. 12 kg
- Input voltage: 200/208/220/230/240 V AC. The default value is 220 V AC.
- Input current: Max. 90 A
- Output voltage: 200/208/220/230/240 V AC. The default value is 220 V AC.
- Output current: Max. 90 A
- Cable outlet mode: Bottom in and bottom out
- Installation mode: Wall-mounted or pole-mounted installation
- IP rating: IP55
Standards Compliance:
- Certifications: IEC62920: 2017, CISPR11: 2015+A1: 2016/EN55011: 2016+A1: 2017, EN62040-2, ETSI EN 301 489-1, ETSI EN 301 489-17, IEC61000-3, IEC 62619, IEC 62109-1, IEC 62109-2, RoHS, EN 50385, RCM, UKCA, ICE 60730, UN38.3
